Easy-to-Install U-Groove Laminate Flooring combines a four-side U-groove edge profile with a click-lock installation system. The rounded bevel is formed during mould-pressing — integrated into the board rather than cut after the surface is finished. Available in 7 / 8 / 10 / 12 mm, with MDF, MHDF or HDF substrates, wear class from AC0 to AC4, and six surface finishes. Manufactured by Shandong Mingzun New Materials Co., Ltd. — OEM, private label and custom decors supported for distributors, wholesalers and flooring brands. Request a sample and quotation.
Request specification sheetMost buyers looking at U-groove laminate are trying to solve a specific visual problem: standard square-edge laminate produces a nearly invisible seam, which reads as one continuous surface rather than individual boards. U-Groove Laminate Flooring solves it by forming a rounded bevel on all four edges of the plank during pressing — the joint stays visible after installation without any post-cutting on site. The click-lock system underneath is what holds the boards together mechanically. These two features serve different functions and are worth understanding separately before you specify.
Final specifications, wear class, substrate, dimensions and warranty conditions should be confirmed against the selected product configuration and order documents.
The U-groove is created on all four edges of the plank during the mould-pressing stage. The bevel is integrated into the board construction — it is not cut into the surface after the wear layer has cured. That distinction matters because cutting a finished surface exposes the core; forming the bevel during pressing keeps the surface construction continuous across the bevel area.

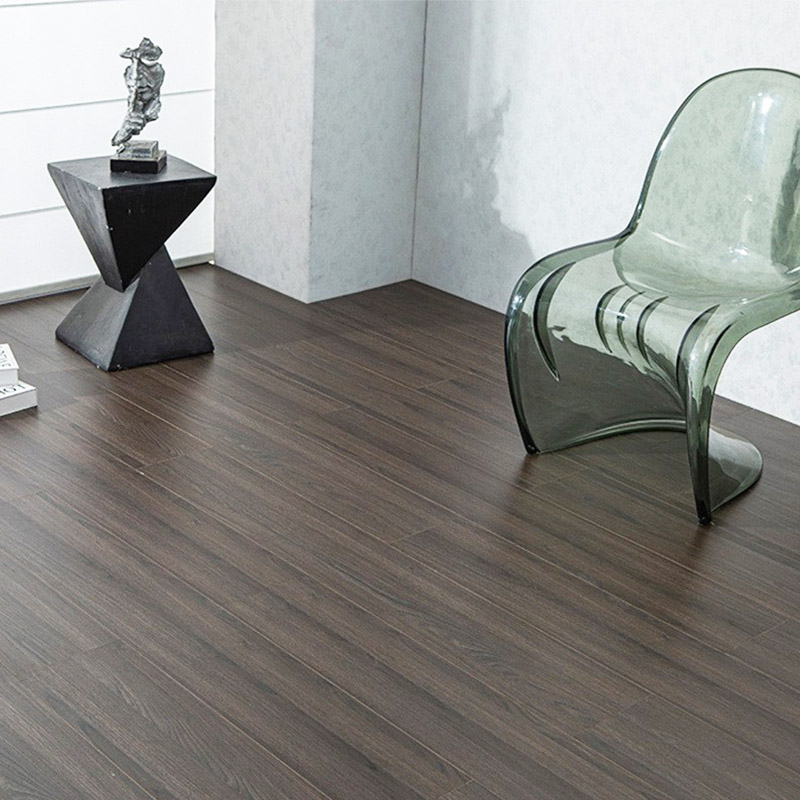

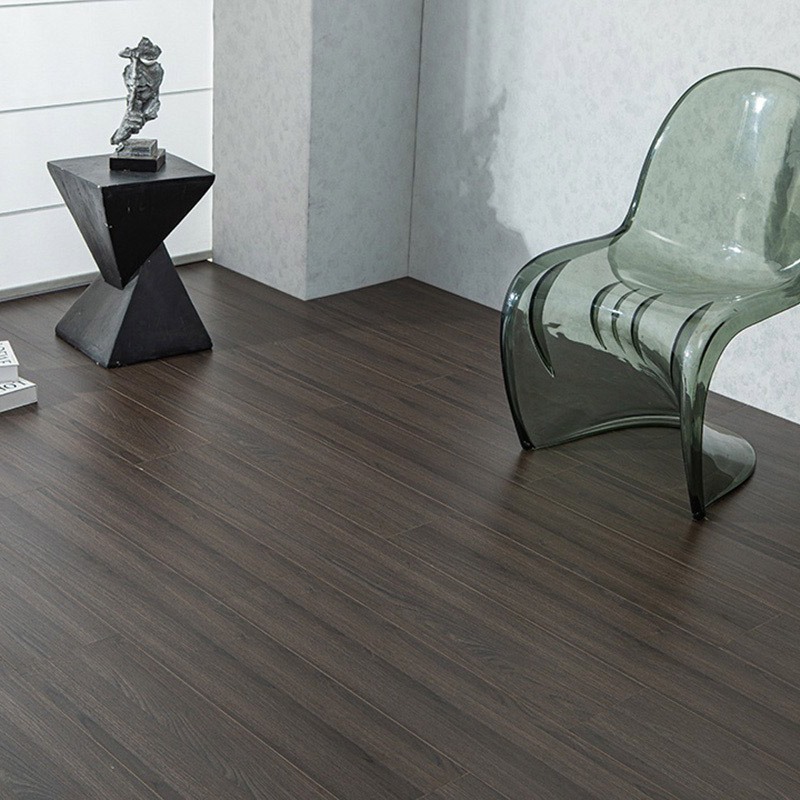

After installation, the rounded U-shaped edges create a visible seam between adjacent planks. This gives the floor a more clearly defined individual-board appearance and reproduces the visual character of timber flooring — the look that drives most specifications for this profile.
The actual wear performance of the edge should still be confirmed according to the selected product specification and test report. Specify the AC grade against the site traffic, not against the edge profile.
These two features should not be confused when selecting laminate flooring. They serve different functions and can be combined on the same plank.
The visible edge treatment. Affects the appearance of the installed floor and the definition of plank joints. Rounded profile, no sharp corners — also reduces dust accumulation along the seam.
This is the part the customer sees after installation. It is chosen for visual reasons — reproducing the appearance of individual timber boards.
The mechanical edge profile used to connect adjacent planks. Affects how the boards engage during installation. This is what holds the floor together without adhesive.
Chosen for installation reasons — deciding whether the floor can be laid floating, and how well the joints hold under expansion and contraction cycles.
The surface finish affects the visual and tactile characteristics of the finished floor. Actual finish availability depends on the selected collection — colour, texture and surface samples should be approved before mass production.
A conventional wood-look surface for residential and general interior applications. Different colours and printed patterns can be developed according to the selected collection.

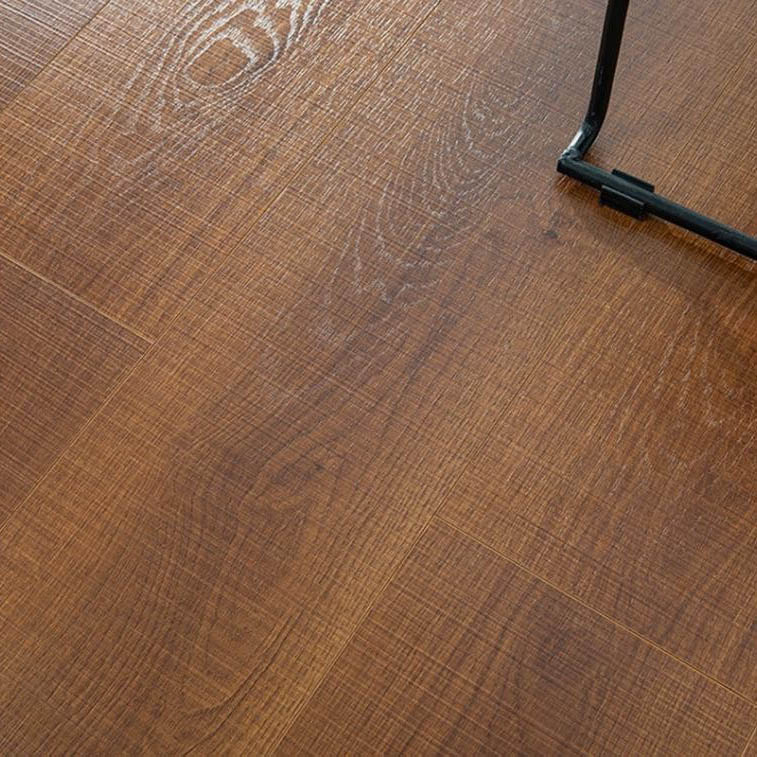

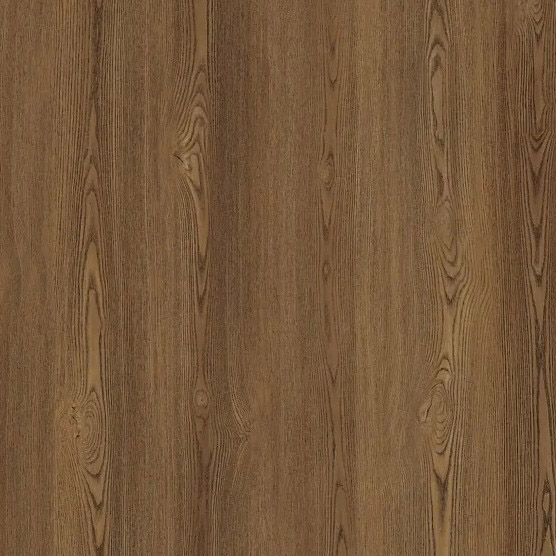

The embossing is aligned with the printed wood pattern, creating a more coordinated surface texture. EIR is suitable when the buyer requires a more pronounced wood-grain effect.
Provides a distinctive surface texture and visual effect for specific decorative concepts. Used where a standard wood-grain finish is not the design intent.
Creates a highly reflective surface appearance. Used for interiors requiring a polished decorative effect — brightens the room through reflection.
Similar reflective surface as Mirror but with slightly different gloss level. Suited to commercial interiors where a polished look is part of the design brief.

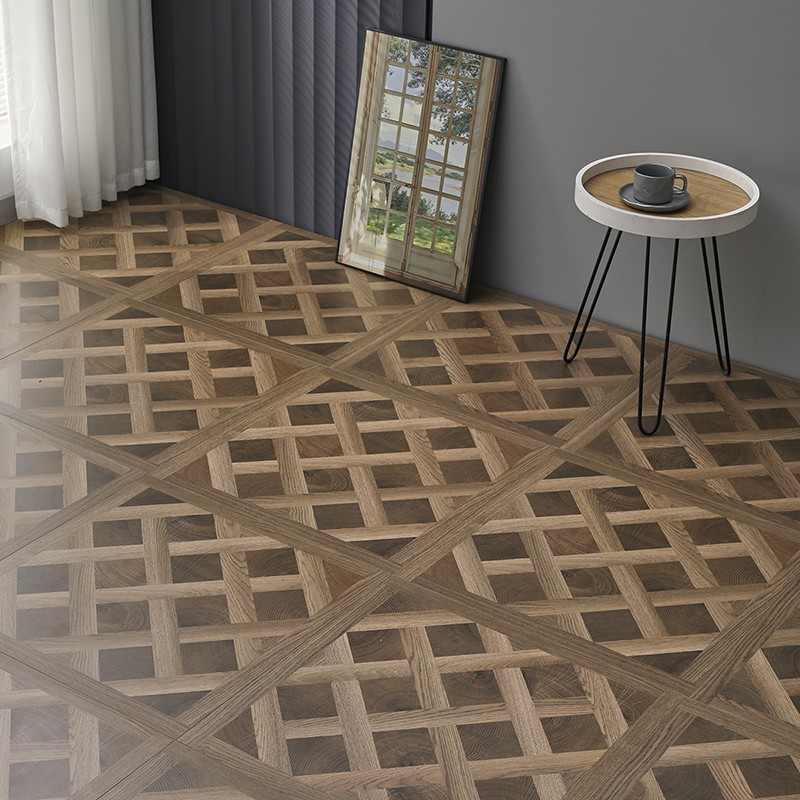

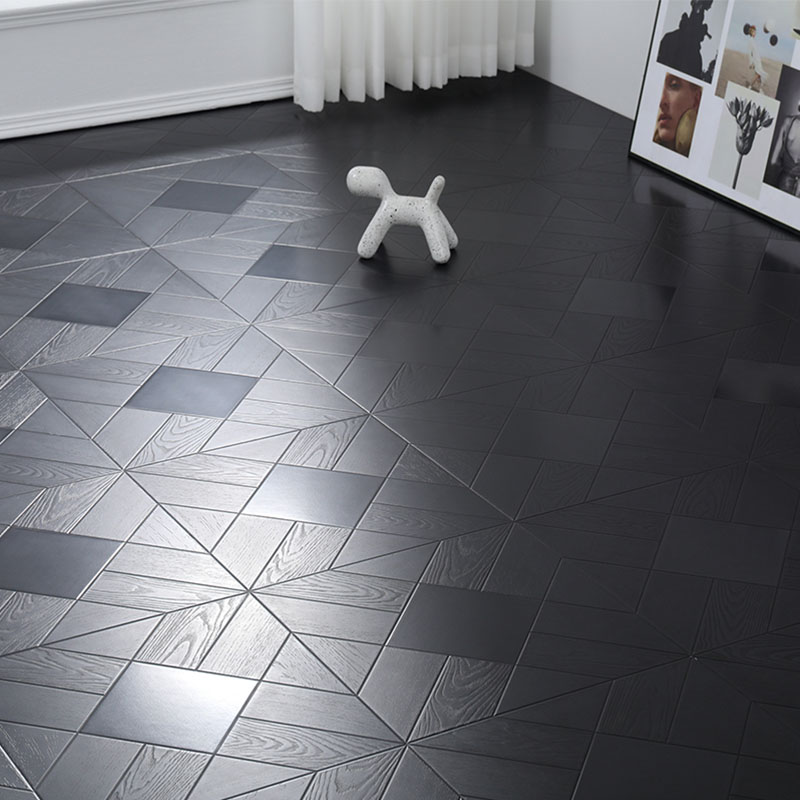

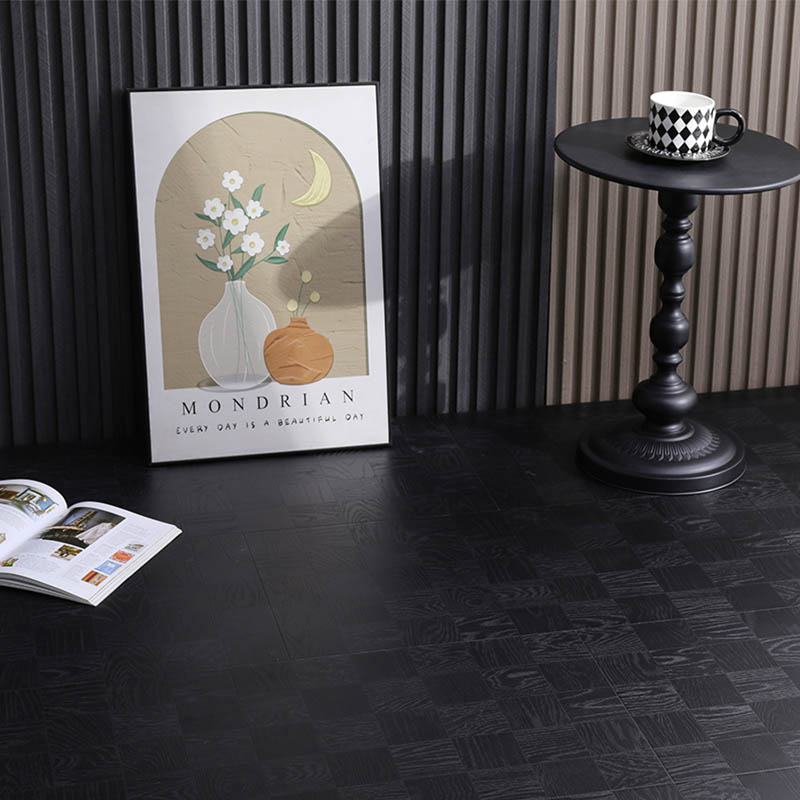

Uses parquet-inspired decorative patterns to create a more distinctive floor appearance while retaining the laminate flooring construction.
AC classification should be selected according to traffic level and the tested construction of the flooring. It should not be considered separately from substrate, surface structure and installation conditions.
Low-traffic residential areas such as bedrooms and closets.
General residential areas with moderate daily traffic — living rooms, dining rooms, studies, small apartments.
Higher-use residential areas and selected light commercial spaces. Children's rooms, entryways, open kitchens.
Heavy residential use and general commercial applications. Retail floors, corridors, offices.
For a residential project, buyers should first estimate daily foot traffic and room function. For commercial applications, areas such as entrances, corridors and retail floors generally require greater attention to wear resistance. The final AC classification should be confirmed against the applicable test report for the selected flooring construction.
The substrate is one of the key components affecting dimensional stability, board strength and installation performance.
Soft wood-fibre board. Suitable for low-traffic residential or budget projects. Not recommended for commercial or underfloor-heating applications.
Moderate structural stability. Density and thickness swelling rate need to be confirmed before order, since MHDF has no unified international standard.
Dense wood-fibre structure. Clean click-lock cutting with minimum chipping, low thickness swelling rate, outstanding anti-deformation. Compatible with underfloor heating.
For bulk projects, buyers should confirm the substrate density and relevant test requirements before production so that samples and mass-produced flooring are based on the same construction. Substrate density, moisture content, thickness swelling, internal bond strength and mechanical properties should be reviewed together rather than selecting a board only by thickness.
The click-lock system connects adjacent planks through a mechanical interlocking profile. Unlike traditional glue-down installation, the boards can be assembled without applying adhesive to the plank joints.
For buyers, click-lock performance is not determined by the name of the system alone. Profile accuracy, board dimensions and subfloor preparation all affect joint engagement during installation.
Confirm the subfloor is clean, flat and suitable for laminate flooring. Maximum height difference should be within the tolerance stated in the installation manual.
Leave the expansion gap specified for the selected flooring system around the perimeter. Insufficient gap causes buckling when the floor expands with seasonal humidity.
Use the manufacturer's installation instructions for the specific click-lock profile. Different profile designs have different engagement angles and closing methods.
Inspect boards before installation and separate visibly damaged pieces. Claims for surface damage cannot be accepted after the board has been installed.

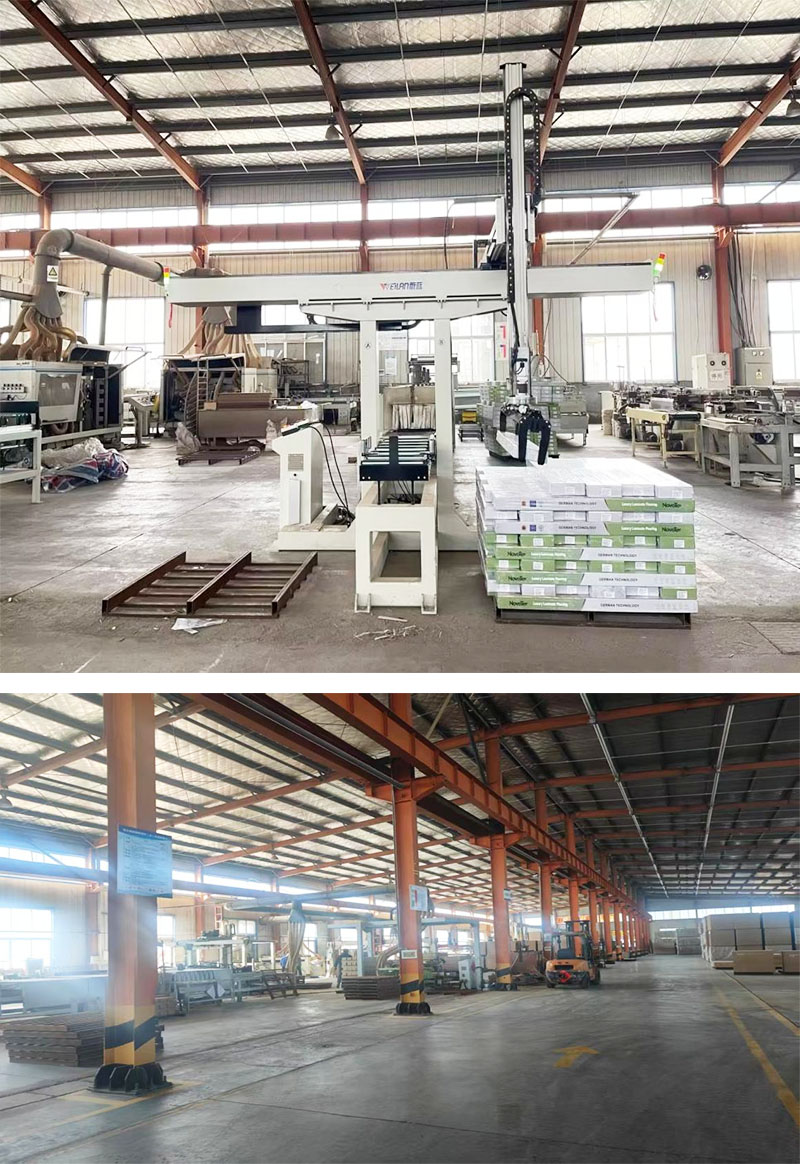

For bulk flooring orders, consistency between production batches is critical. Quality control covers the material, pressing, machining and finished-product stages.
Incoming MDF, MHDF or HDF boards are checked for appearance, dimensions, flatness, density and moisture content. Depending on specification, laboratory testing can include internal bond strength, thickness swelling, modulus of rupture and formaldehyde emission.
Only qualified substrate enters the lamination process.
The wear overlay, decorative paper, core and balancing paper are arranged in the specified sequence. During DPL pressing, heat and pressure activate the melamine resin and bond the layers into a finished board. For selected EIR products, surface embossing is formed during pressing.
After pressing, boards are cooled and conditioned before subsequent cutting and profile machining.
The laminated boards are cut to the required dimensions and processed to form the U-groove profile. Dimensional consistency is controlled because differences in length, width or thickness can affect both installation and visual alignment.
The plank edges are precision-machined according to the selected click-lock profile. Profile dimensions are checked because inaccurate locking geometry can affect joint engagement during installation.
Finished flooring is inspected for dimensions, appearance, surface condition, U-groove profile and click-lock performance according to the applicable product specification.
Carton structure, internal protection, palletisation and loading methods are adjusted according to order requirements and transportation conditions.
For flooring distributors, wholesalers and project buyers, product consistency across a production batch is often as important as the appearance of an individual sample.

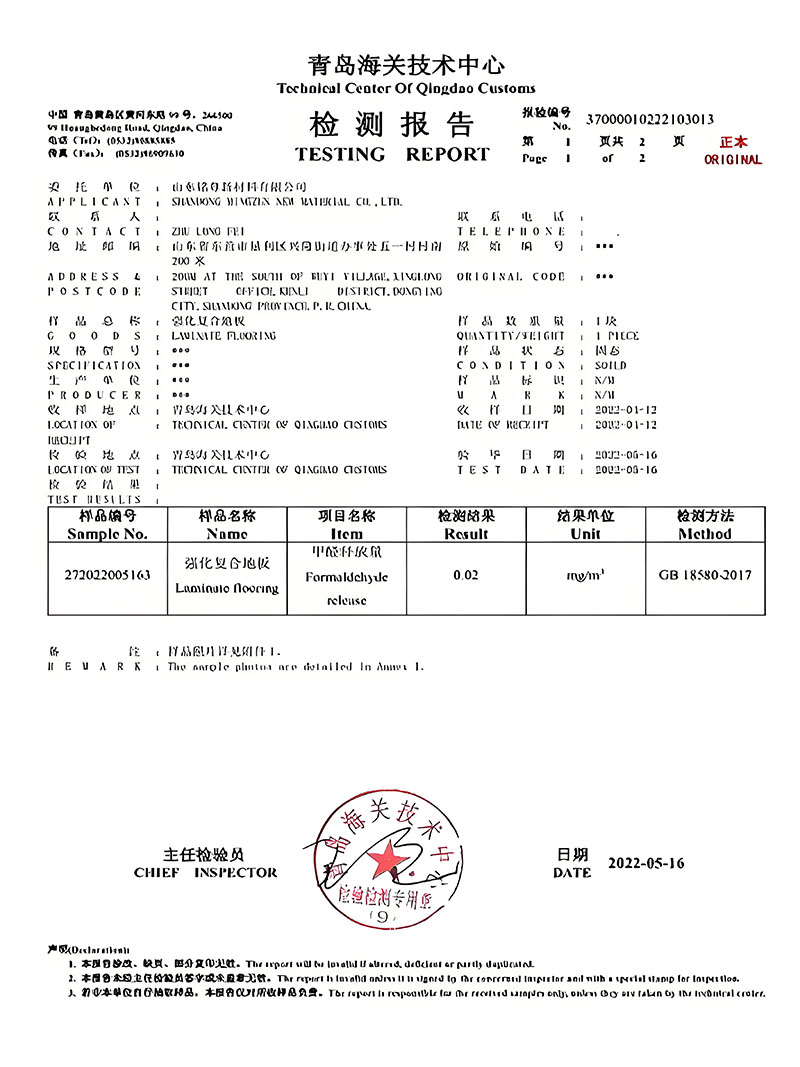

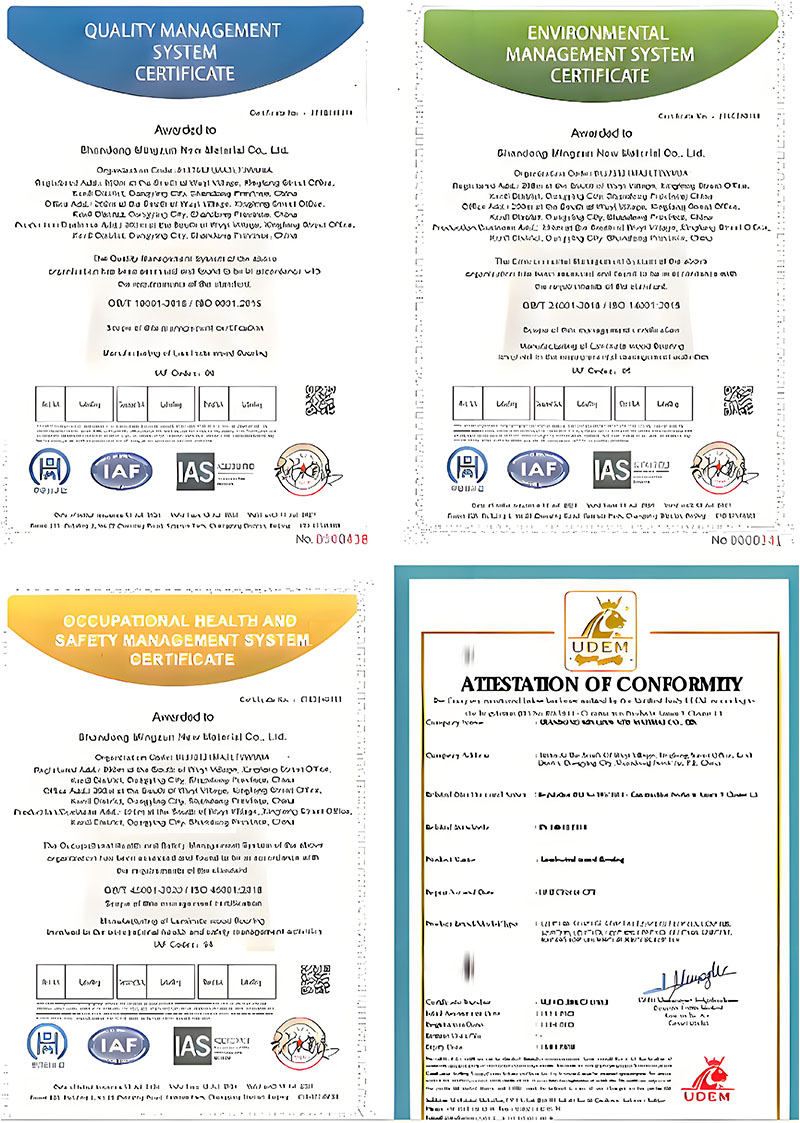

Certification scope and validity should be confirmed against current certificates and the specific flooring configuration before being used for a project, tender or market-compliance claim.
For export orders, flooring can be packed according to product specifications, brand requirements and transportation conditions.
Sea, air and land transportation are available. Shipping documents can include the commercial invoice, packing list, bill of lading, certificate of origin and other documents required by the buyer.
Final lead time and shipping arrangements should be confirmed in the quotation and sales contract.
Questions that come up most often during the specification stage.
No. U-Groove has a rounded U-shaped edge profile, while V-Groove uses a V-shaped profile. This Easy-to-Install U-Groove Laminate Flooring is specified as U-Groove and should not be described as V-Groove unless the actual product configuration is changed.
The available thicknesses are 7 mm, 8 mm, 10 mm and 12 mm. The appropriate thickness should be selected together with substrate, application and installation requirements.
MDF, MHDF and HDF are available. For project orders, buyers should compare density, moisture content, thickness swelling and mechanical properties instead of selecting only by board thickness.
Selected AC3 and AC4 configurations can be used for higher-use residential areas and certain commercial applications. The actual suitability depends on traffic level and the tested specification of the selected product.
Yes. OEM projects can be developed with customized colours, wood patterns, surface textures and decorative effects. Samples should be approved before mass production.
Yes. Carton printing, brand logos, series names, barcodes and market-required markings can be customized according to the order requirements.
Confirm the board thickness, substrate and density, dimensions, AC class, U-groove profile, click-lock system, surface finish, decor, packaging and required technical documents. For customized products, approve the pre-production sample before mass production.
Standard products can generally be arranged within about 15 working days. Customized products may require approximately 30 – 45 working days depending on the product configuration and order quantity.
Shandong Mingzun New Materials Co., Ltd. is the manufacturer of the flooring, with production and R&D capabilities for laminate flooring products. Buyers can request current factory information, certificates, samples and applicable technical documents during the purchasing process.
Send your target thickness, substrate, AC class, plank size, surface finish, decor, estimated quantity and packaging requirements. We will confirm the available construction, sample options, production lead time and technical documents for your project. Contact us here.
