This laminate flooring uses an HDF substrate with a decorative Chinese knot pattern and a click-lock profile for floating installation. Different wear-resistance grades can be selected according to the expected foot traffic and application area.

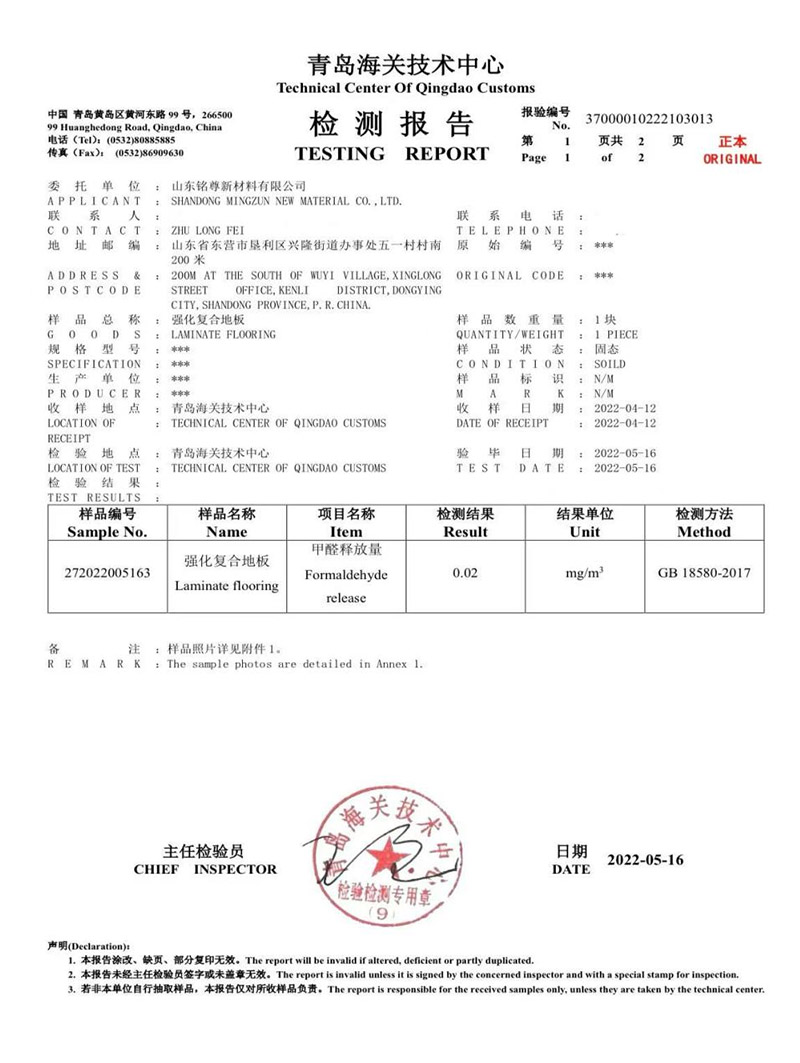

The product is available with a formaldehyde emission level of ≤0.025 mg/m³ according to the specified product configuration and applicable testing requirements. OEM and ODM orders can be developed with customized surface designs, dimensions, wear classes and packaging.
For bulk orders, Mingzun provides sample confirmation, production coordination and export packaging based on the approved product specification.

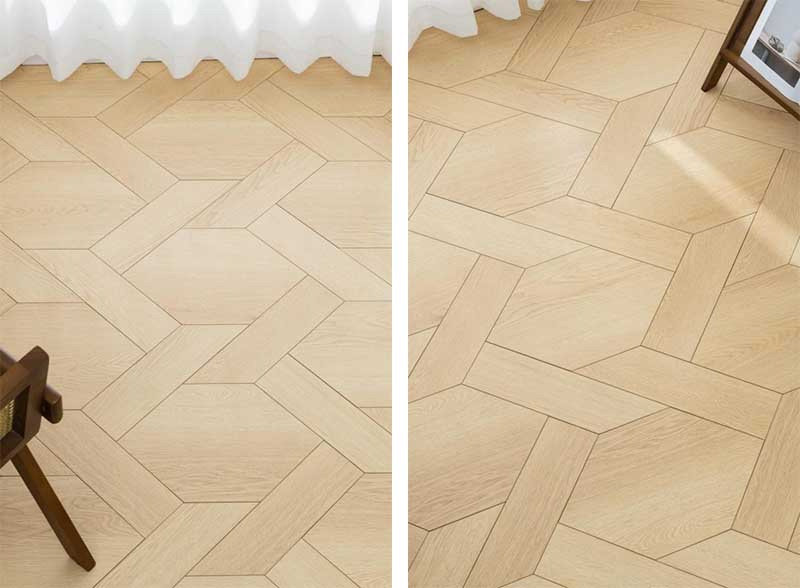

The surface uses a Chinese knot-inspired interwoven pattern rather than a conventional wood-grain or herringbone layout. Its repeated geometric structure creates a recognizable decorative effect and can be used in interiors that incorporate traditional Chinese design elements.
The pattern can be specified in different colors and surface finishes for OEM projects. Sample approval is recommended before mass production to confirm the final color, texture and printed pattern.
The flooring uses a high-density fiberboard substrate as its main structural layer. HDF provides the base for the decorative and wear-resistant surface layers while maintaining the dimensional form required for click-lock installation.
Board density, moisture content and dimensional tolerance should be controlled during production because these factors affect board stability and joint fit.
Suitable for bedrooms, living rooms, dining areas, studies and other residential spaces. The appropriate wear class can be selected according to room function and expected foot traffic.
AC3 or AC4 configurations can be considered for selected offices, retail stores, meeting rooms and other light-commercial areas with higher daily use.
The Chinese knot pattern is suitable for hotels, guest rooms, tea rooms, cultural spaces and other interiors where a Chinese-inspired decorative style is required.
The wear-resistant layer is the top surface of laminate flooring, infused with aluminium oxide particles. It protects the decorative pattern against scratches and foot traffic abrasion. The AC (Abrasion Class) rating indicates abrasion resistance; higher AC value means better wear performance.
| Abrasion Class | Performance Description | Application Scenarios |
| AC0 | Decoration-oriented grade with few abrasive particles, weak wear resistance, focuses on pattern display | Interior decorative areas with extremely low foot traffic, not for heavy-use zones |
| AC1 | Light-duty residential grade | Low-traffic rooms: bedrooms, walk-in closets |
| AC2 | General-duty residential grade | Study rooms & secondary rooms for moderate household foot traffic |
| AC3 | Heavy-duty residential / light-commercial, mainstream household grade | Living rooms, hallways, small offices |
| AC4 | Top-tier light-commercial grade with optimum wear resistance | Retail stores, meeting rooms, high-traffic residential public areas |
For a residential project, buyers should first estimate daily foot traffic and room function. For commercial applications, areas such as entrances, corridors and retail floors generally require greater attention to wear resistance.
The final AC classification should be confirmed against the applicable test report for the selected flooring construction.
The click-lock system connects adjacent laminate flooring planks through a mechanical interlocking profile. Unlike traditional glue-down installation, the boards can be assembled without applying adhesive to the plank joints when the selected system is designed for glue-free installation.
For buyers, click-lock performance is not determined by the name of the system alone. Profile accuracy, board dimensions and subfloor preparation all affect joint engagement.
Before installation:

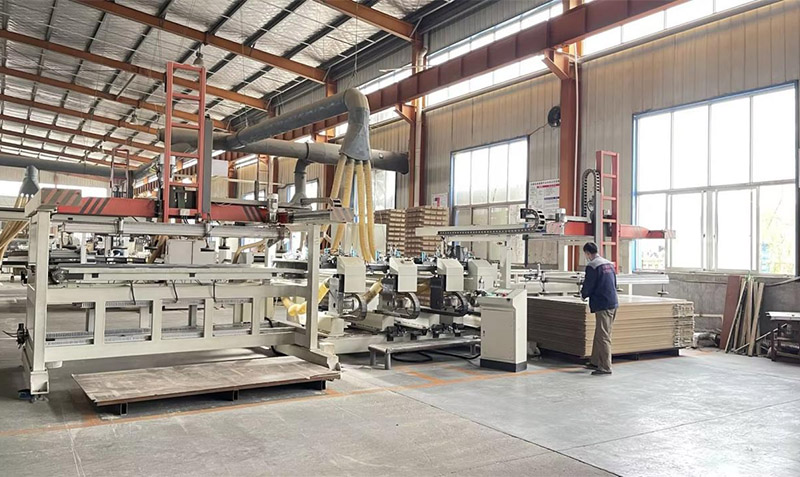

HDF substrates and decorative materials are inspected before production. Key checks include density, moisture content, bonding condition, dimensions and other requirements specified for the selected product.
Wear paper, decorative paper, HDF core and balancing paper are aligned and laminated under controlled heat and pressure. The process bonds the individual layers into a finished flooring board.
Laminated boards are conditioned and cut to the required dimensions. Length, width and thickness are checked to maintain consistent plank dimensions for installation.
The plank edges are machined to the specified click-lock profile. Profile dimensions and groove geometry are checked during production to maintain consistent joint engagement between boards.
Finished flooring is checked for surface appearance, flatness, dimensions, edge condition and locking profile. Defective boards are removed before packing.
Finished products are packed in customized cartons with internal protection and palletizing where required. Packaging specifications can be adjusted according to container loading and destination-market requirements.
For bulk flooring orders, batch consistency is important for both distributors and project buyers. Mingzun's inspection process focuses on the product characteristics that directly affect installation and finished-floor appearance.
HDF substrates are checked for density and moisture content. Finished boards are checked for dimensions, flatness, surface appearance and click-lock profile accuracy. The Chinese knot pattern is also inspected for printing defects and visual consistency.
Before shipment, product quantity, carton markings and export packaging are checked against the approved order specification.

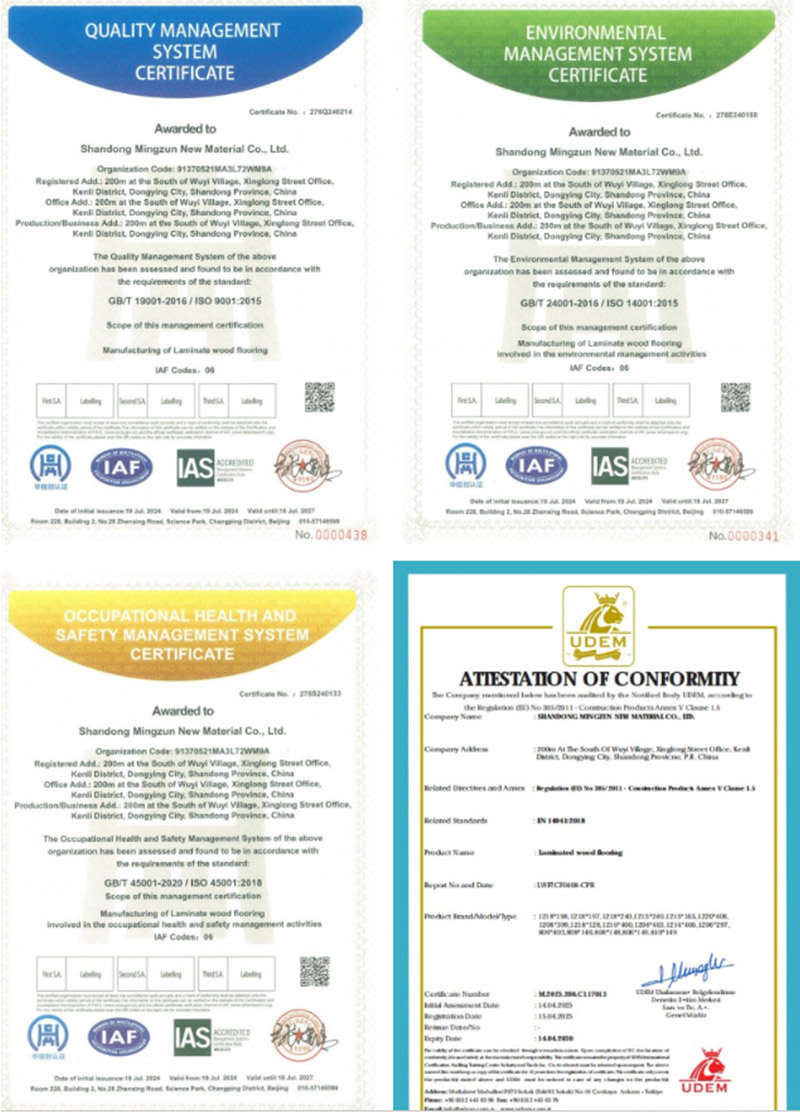

Shandong Mingzun New Materials Co., Ltd. maintains ISO 9001, ISO 14001 and ISO 45001 management-system certifications.
CE certification and B1 fire-rating documentation may be available for applicable products and configurations. Certification scope, validity and product applicability should be confirmed against the current official documents before use in tenders or market-compliance submissions.
Product-specific test reports and technical documents can be provided according to the selected flooring specification and destination market.
Mingzun has more than 10 years of experience in laminate flooring production and export. The company works with distributors, contractors and project buyers on bulk orders and export shipments.
OEM and ODM projects can be customized in decorative pattern, color, surface texture, dimensions, wear class and packaging. Private-label packaging can include customer branding, product information and required markings.
Samples can be provided for checking the pattern, color, surface texture and overall construction before bulk production. Mass production follows the approved product specification.
Mingzun supports container-based bulk orders with production scheduling, quantity verification and export packaging. Packaging and product specifications are confirmed before production.
It is laminate flooring with a Chinese knot-inspired decorative pattern. The product uses an HDF core and click-lock installation system and is available in different wear-resistance configurations.
The Chinese knot pattern uses an interwoven geometric design inspired by the traditional Chinese knot, while herringbone flooring is based on a repeated V-shaped or broken zigzag arrangement.
AC3 is commonly considered for higher-traffic residential areas and selected light-commercial applications. AC4 can be selected for areas with greater surface abrasion and foot traffic. The final choice should follow the project requirements and applicable test data.
When the selected click-lock profile is designed for floating glue-free installation, adhesive is not required at the plank joints. Installation should follow the manufacturer's instructions.
Yes. OEM and ODM projects can be developed with customized colors, decorative patterns, surface textures and dimensions. A sample should be approved before mass production.
Yes. Samples can be provided for evaluating the pattern, color, surface and product construction before production.
Yes. Packaging can be customized with customer branding, product information, carton design and other agreed markings.
Available documents depend on the selected product and destination market. Product-specific test reports, technical specifications and applicable certification documents can be confirmed before ordering.
The standard MOQ is one 20GP container, with 500 m² per color. The final MOQ should be confirmed according to the product specification and order requirements.
Shandong Mingzun New Materials Co., Ltd. manufactures laminate flooring products and provides production, customization and export support for distributors, contractors and project buyers.
Send your required specifications and estimated quantity to MINGZUN. The supplier can confirm the available configuration, sample arrangement, packaging, MOQ, quotation, and delivery schedule. For related flooring options, see our full laminate flooring range.
